IKE on-sale conveyor belt manufacturers for food1
- To achieve the goal of providing high-quality service, IKE runs a positive and enthusiastic customer service team. Professional training will be carried out on a regular basis, including the skills to handle customer's complaint, partnership management，channel management, customer psychology, communication and so on. All this contributes to the improvement of team members' ability and quality.
1. IKE conveyor belt manufacturers is tested during the production process and guaranteed that the quality meets the food grade requirements. The testing process is carried out by third-party inspection institutions who have strict requirements and standards on food dehydrator industry.
2. In our strict quality assurance procedures, any defects of the products have been avoided or eliminated.
3. Our professional and technical personnel supervise the quality control throughout the production process, which greatly guarantees the quality of the products.
4. This product has been exported to many overseas markets.
5. This product is widely used due to its high economic return.

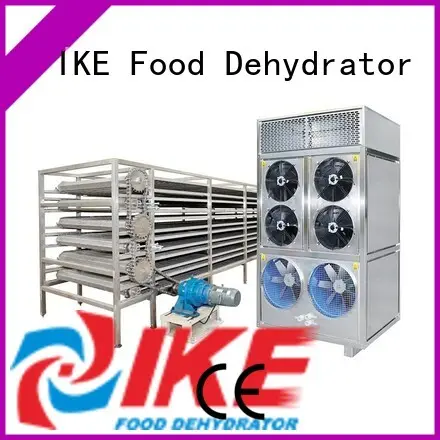

IKE customized conveyor mesh belt large food dehydrator is automatic continuous drying machine for large-scale production. The continuous drying machine can be equipped according to the user’s requirement and the production demands. It is suitable for drying a very large variety of food. Such as noodles, dehydrated vegetables for instant noodles, fruits, seafood, and so on. Contact us for free drying testing!
Model | Unit | WRH-1200AL | WRH-1200GL |
Power supply | V/Hz | 380V-3N / 50Hz | 380V-3N / 50Hz |
Power input | Kw | 13.0 | 13.0 |
Running current | A | 20 | 20 |
Fast heating-up | Kw | 9.0 | 9.0 |
Maximum Power | Kw | 24 | 24 |
Dehumidification amount | Kg/h | 40 | 36 |
Best Drying Temperature | ℃ | 50~65 | 50~80 |
Max. hot air Temperature | ℃ | 65 | 80 |
Working Ambient temperature | ℃ | 5~40 | 5~40 |
Noise Level | dB(A) | ≤ 72dB | ≤ 72dB |
Wind volume | m³/h | 4000m*2+2200*4 | 4000m*2+2200*4 |
Machine Dimension(L*W*H) | Mm | 1250*800*1920 | 1250*800*1920 |
Gross Weight | kg | 390 | 390 |
Different Models can be customized based on requirment
Model | Unit | Flow Lines |
Power Supply | V/Hz | 380V~3N/50Hz |
Power Input | Kw | 0.1-8.0kw variable frequencies to adjust |
Maximum Current | A | 10 |
Maximum Power Consumption | Kw | 8.0 |
Layer Number |
| 1-10 layers to choose |
Operation Speed | m/min | 0m/min-2m/min to adjust |
Chain Width | m | 1.0-6.0 to choose |
Chain Material |
| 201, 304, 316 stainless steel to choose |
Chain Length per layer | m | 1.5m-12m to choose |
The automatic belt food dehydrator uses air to transfer heat and remove moisture as the food moves through multiple temperature zones on a conveyor bed. By adding rotary feeding device, the evenly spreading can be realized, and as there are no drops during drying. The balanced drying can be ensured. The dried food will be automatically discharged to a collector.
The running speed of the conveyer belt can be adjusted according to the food character.
1. Middle and low temperature dehumidification drying
The IKE customized conveyor mesh belt large food dehydrator drying fruits and vegetables in 50℃~80℃, articles does no damage, no moldy and maintain nutrition.
2. Use heat pump technology
The IKE customized conveyor mesh belt large food dehydrator with high efficiency through the use of a heat pump system for removing air humidity.
3. Working in wholly sealed drying system, hygiene and energy conservation
Drying in a closed sealed system, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
4. Running Stable, operating easily
Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. With many years of experience in creating steel conveyor belt , IKE deeply implement the pursuit of quality of life to meet different needs.
2. IKE has enough capability to produce metal conveyor belt with conveyor belt manufacturers .
3. Guangdong IKE Industrial Co.,Ltd. will provide you with more professional, more wonderful, more perfect service. Inquire online! We always keep in mind technological innovations to achieve the long-term development of stainless steel conveyor . Inquire online! Maintaining the top position in the business puts particular pressure on the team, but it's a challenge welcomed by most of our people. Inquire online! IKE Sincerely hope to establish high-quality long-term cooperation relationship with all customers. Inquire online!
IKE: Smart Drying, Industry Defining.
Your Trusted Commercial and Industrial Food Dehydrator Manufacturer, Specializing in High-Quality Drying Solutions Since 1994.
