IKE electric cabinet dryer for food fruit
1. As our dry cabinet are made of cabinet dryer for food , they are durable and high quality.
2. The product is highly responsive. Thanks to its advanced control system, it can respond in a short time without any delay.
3. This product has the required strength. As it is made up of various machine elements on which various forces are applied, the forces acting on each of the element are meticulously calculated to optimize its design.
4. If necessary, Guangdong IKE Industrial Co.,Ltd. will arrange free samples of dry cabinet for testing first.
5. dry cabinet boast of its good service and high quality.

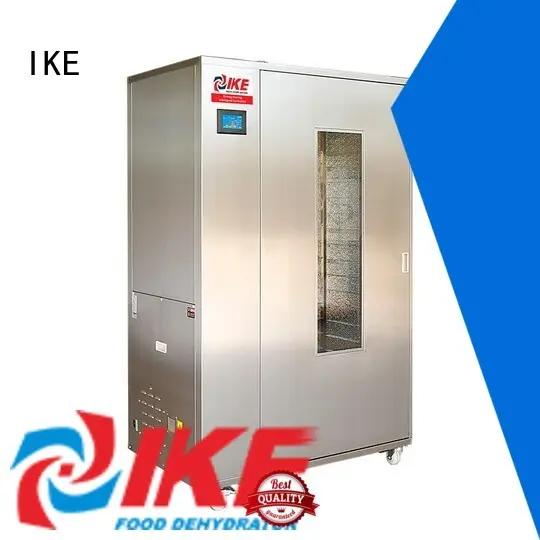

IKE food dehydrator WRH-100B has a compact structure, great energy-saving, wide application, high drying quality, easy operation, simple installation and removable. it is the best drying equipment for small firms, drying experiment and scientific research. optional "cloud" management function to achieve remote monitoring by computers and mobiles.
The users only connect the power to use, is the easiest operation heat pump dryer.
SPECIFICATIONS FOR WRH-100B | ||
Main performance parameters | Materials | Stainless Steel |
| Capacity | 20-100kg/batch | |
Power Supply | 220v/50Hz/60Hz | |
Power Input | 1.0KW | |
Running Current | 5.0A | |
Fast heating-up | 1.0KW | |
Maximum Power | 2.2Kw | |
Dehydration Amount | 3.5Kg/h ( @ 50℃，80%） | |
Working Temperature | 50~65℃ | |
Working Ambient Temperature | 5~40℃ | |
Noise Level | ≤60dB(A) | |
Wind Volume | 1100m³/h | |
Machine Dimension(L*W*H) | 1180*680*1800mm | |
Tray Size(L*W*H) | 780*540*30mm | |
Net Weight | 160Kg | |
Gross Weight | 180Kg | |
Quality Control | IQC (Incoming quality check)；IPQC (In-process quality check)；OQC (Out-going quality check)；FQC (Final quality check) | |
Payment terms | 1, We can offer different pricing of FOB, CIF and C&F. | |
Shipping | 1, We offer FOB Guangzhou and FOB Shenzhen to our customers. | |
Drying essence is take moisture away, but takes away the moisture temperature is not the most critical factor. The key for drying is depending on relative humidity within certain space, IKE Company took advantage of the dry essence, originality developed a "Closed Cycle" dryer, changed the traditional heat pump dryer "bake" to "dehumidifier”. Its several advantages were unmatched by the traditional heat pump dryer.
Applicable locations and situations for WRH-100B: dried fruit production, sausage production, rare chinese herbal medicine, initial processing for produce, etc.
Fruits
apple drying, banana drying, lemon drying, longan drying, kiwi drying, grape drying, etc.Vegetables
tomato drying, sweet potato drying, potato drying, chilli drying, etc.Flowering teas
yellow chrysanthemum drying, rose flower drying, pomelo flower drying, etc.
Meat
pork drying, beef drying, dog treat drying, chicken drying, sausage drying, etc.Seafood
fish drying, squid drying, shrimp drying, sea cucumber drying, etc.Herbal medicine
orange peel drying, moringa leaves drying, maca drying, lonicera japoniac drying, etc.
fruits and vegetables drying
meat drying
Strong wind dehumidification drying in 25℃~65℃, articles does no damage, no moldy and maintain nutrition.
Drying in a closed sealed room, no foreign material pollution. Efficiency is irrelevant to external environment, that can maintain high energy efficiency at all seasons. No hot air and water vapor loss maximize energy recovery.
All in one design, operation directly after power switched on. Graphical touch control system, automatic intelligent control and demands no human duty after setting.
Company Features
1. Guangdong IKE Industrial Co.,Ltd. is a top dry cabinet provider and manufacturer with powerful R&D capability.
2. We have exported most of our products to North America and Europe. These customers in these group have shown great interest in our products. We are building a solid customer base.
3. Guangdong IKE Industrial Co.,Ltd. highly respects talents and cabinet dryer for food . Inquire online! Guangdong IKE Industrial Co.,Ltd. understands the strategy of 'collaboration, alliances and win-win cooperation'. Inquire online! IKE enjoys a good reputation for its considerate service. Inquire online! IKE's aim is to offer the best customer service for customers. Inquire online!
FAQ:
Q: Why choose Horizontal condensing unit?
Horizontal condensing unit is more compact, providing more effective volume in the showcase.
Q: What’s type of compressor of the condensing unit? What’s the advantage compared to reciprocating compressors?
The compressor is rotary compressor. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced. Horizontal design makes the condensing unit more compact
Q: Can we use this condensing unit frozen room -22℃?
Yes. The evaporating temperature of condensing unit is from -5 degree to -40 degrees. It can use in frozen room also cold storage room.
Q: Are you manufacturer?
Yes. We are professional manufacturer of rotary compressor and condensing units for more than 12 years. .
Q: Do you have the warranty?
We have one year warranty for manufacturers.
Q: Which customers do you cooperated with?
We have cooperated with many domestic and international manufacturers, like PREAIR, KINGTEC, HAIER, SANYO, and DAYRELAX and so on.
Q: What are your payment terms?
T/T and L/C are both OK.
Description:
Horizontal condensing unit adopt R404A refrigerant, applied to commercial freezing cold storage showcase, kitchen equipment, refrigeration storeroom, vehicle refrigeration equipment and other refrigeration equipments.
Refrigerant: R404A Refrigerant
Power supply: 220V~240V/50HZ
Capacity: 0.75 HP~3 HP
Model:
HQHD-13K 0.75 HP
HQHD-16K 1 HP
HQHD-23K 1.5 HP
HQHD-30K 2 HP
HQHD-36K 2.5 HP
HQHD-41K 3 HP
Feature:
Compact Size. Horizontal condensing unit are suitable for self-contained showcase thanks to their low height.
Low noise & vibration. In the rotary type, noise and vibration is largely reduced compared with the reciprocating compressor. Therefore noise generated by the unit can be reduced.
High reliability. High reliability is achieved due to high-quality material and high-accuracy parts.
High efficiency. Using high efficiency rotary compressor and motor, energy saving.
Wide Evaporating temperature range. Evaporating Temperature is from -5 degree to -40 degrees.
Low height. The total height of the Horizontal condensing unit is not more than 275mm.
Compressors are able to work continuously under high-temperature condition.
Application:
1. Commercial freezing refrigeration equipment
2. Supermarket freezer, showcase, cabinet
3. Cook room equipment
4. Storage cold room, cool room
5. Vehicle Refrigeration system
Parameter:
MODEL | HQHD-13K | HQHD-16K | HQHD-23K | HQHD-30K | HQHD-36K | |
NOMINAL INPUT(W) | 720 | 900 | 1280 | 1500 | 1730 | |
POWER SUPPLY | SINGLE PHASE: 220V-240V/50Hz | |||||
REFRIGERANT MAX.(KG) | R404A(1.2) | R404A(1.5) | R404A(2.0) | R404A(3.0) | R404A(3.0) | |
START-UP CURRENT (A) | 20 | 27 | 38 | 42 | 50 | |
MAX. RUNNING CURRENT (A) | 4.0 | 5.0 | 7.0 | 8.5 | 10.0 | |
EVAP. TEMP. RANGE (℃) | -40~0 | |||||
AMBIENT TEMP. (℃) | -7~43 | |||||
REFRIGERATION CAPACITY | EVAP. TEMP.(℃) | REFRIGERATION CAPACITY: W(Kcal/h) | ||||
-40 | 504(433) | 630(542) | 850(731) | 1200(1032) | 1250(1075) | |
-35 | 654(562) | 820(705) | 1104(949) | 1506(1295) | 1604(1379) | |
-30 | 807(694) | 950(817) | 1240(1066) | 1803(1551) | 2030(1746) | |
-25 | 975(839) | 1203(1035) | 1565(1346) | 2200(1892) | 2560(2202) | |
-20 | 1190(1023) | 1430(1230) | 1890(1625) | 2604(2239) | 3050(2623) | |
-15 | 1430(1230) | 1705(1466) | 2130(1832) | 2950(2537) | 3500(3010) | |
-10 | 1790(1539) | 2050(1763) | 2460(2116) | 3560(3062) | 4230(3638) | |
-5 | 2130(1830) | 2340(2012) | 2827(2431) | 3911(3363) | 5000(4300) | |
